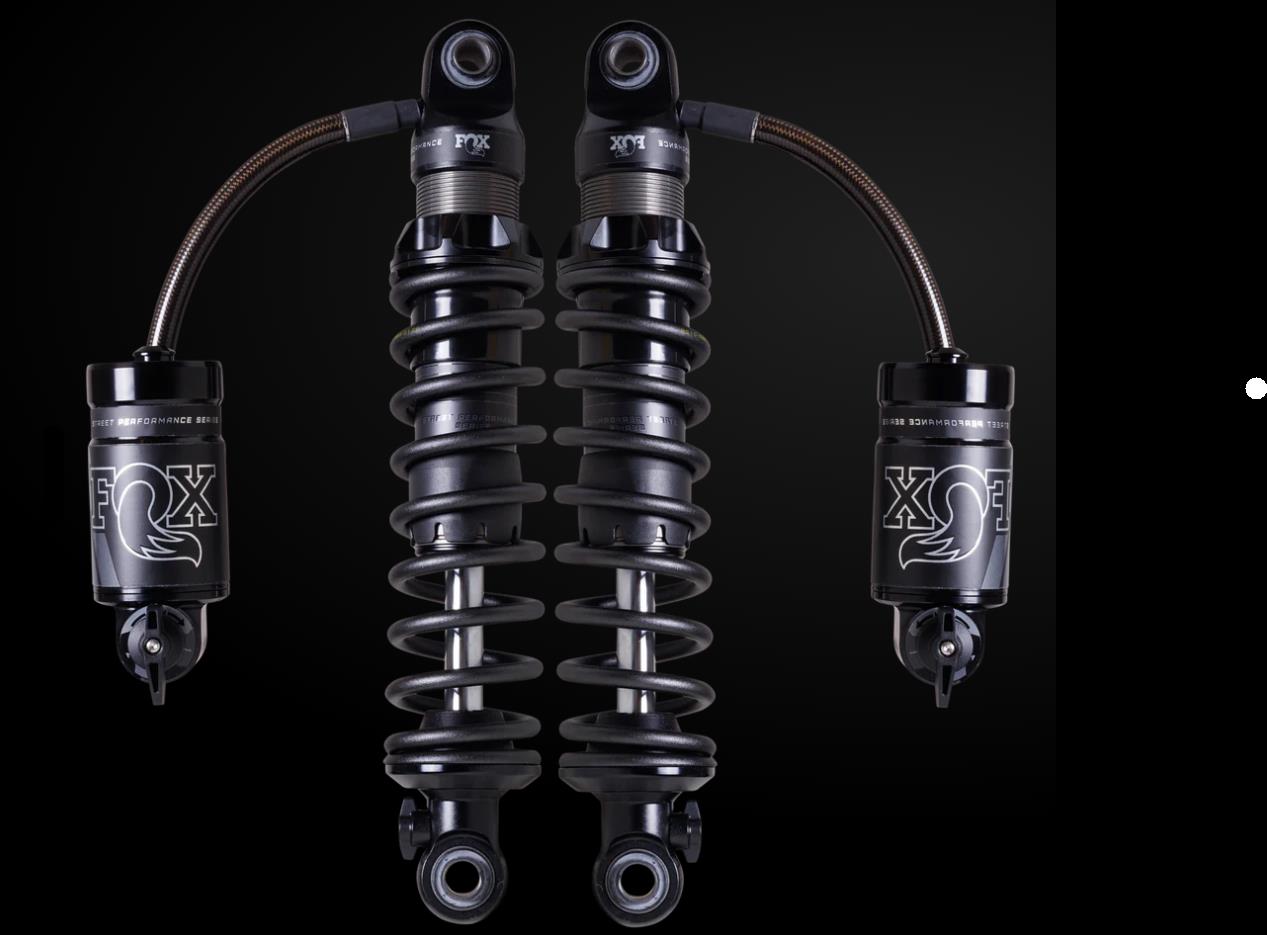

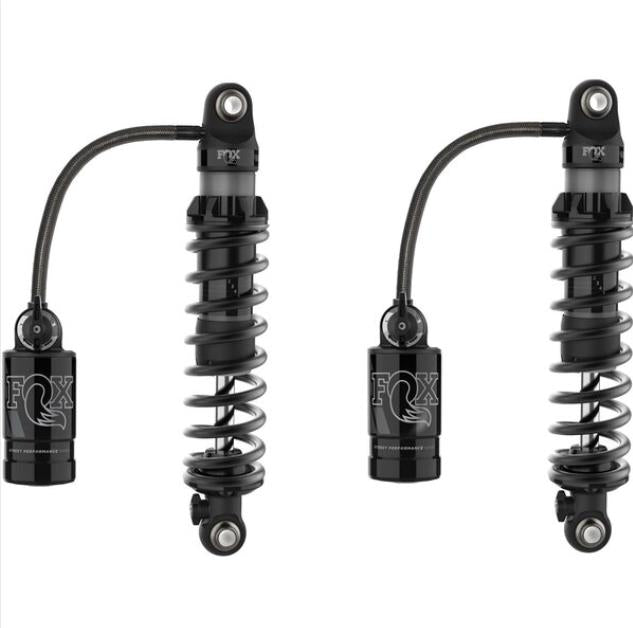

Fox Racing 1994up Harley Touring QS3 QSR Remote Reservoir 13" Shocks 897-27-311

The new FOX STREET PERFORMANCE QS3-QSR remote reservoir rear shocks were designed to increase your bagger’s performance and style. The remote reservoirs increase the fluid capacity and improve cooling by mounting custom brackets above the side bags where they get better airflow. This mounting position also gives you easy access to the Quick Switch compression (QS3) three-position adjuster on the remote reservoirs, allowing you to select between three specific settings: maximum comfort, extra support during hard acceleration, or most responsive and precise handling. The main piston valving has been developed and extensively ride-tested in a full range of conditions to work in harmony with the new three-position Quick Switch Rebound (QSR) settings. Three distinct settings make it easy to dial in the correct rebound for different riding situations: comfort on bumpy backroads, “any road” balance of control and comfort, and a “glued to the asphalt” feeling on smooth twisty roads. In addition, the remote reservoirs house internal floating pistons to separate the nitrogen gas from the shock oil, meaning the QS3-QSR remote reservoir shocks will maintain damping control no matter how long you ride. FOX’s new remote reservoir QS3-QSR compression and rebound-adjustable design—combined with vehicle-specific damping and linear spring rates—gives you the ability to quickly adapt to any riding situation.

Features

• Model-specific optimized ride tune
• Spring preload setting guide marks
• Aluminum remote reservoirs with custom mounting brackets
• Gas-charged mono-tube with internal floating piston (IFP) design
• 1.5-inch diameter 6061-T6 aluminum type III hard-anodized bodies
• Fully rebuildable and re-valvable
• Advanced high-flow, deflective disc velocity-sensitive damping
• 5/8-inch diameter, low friction, super-finished hard chrome shafts
• Matte black springs and black-anodized preload rings

Adjustments

• QS3 3-position quick switch compression adjustment
• QSR: 3-position quick switch rebound adjustment Spring preload
• Extended 13.060
• Compressed 9.750
• Top Mount Eyelet
• Bottom Mount Eyelet
• Reservoir Remote
• Ride Height Standard
• Spring Weight Heavy Duty: 240lb - 389lb total rider load (ideal for two up-riding)

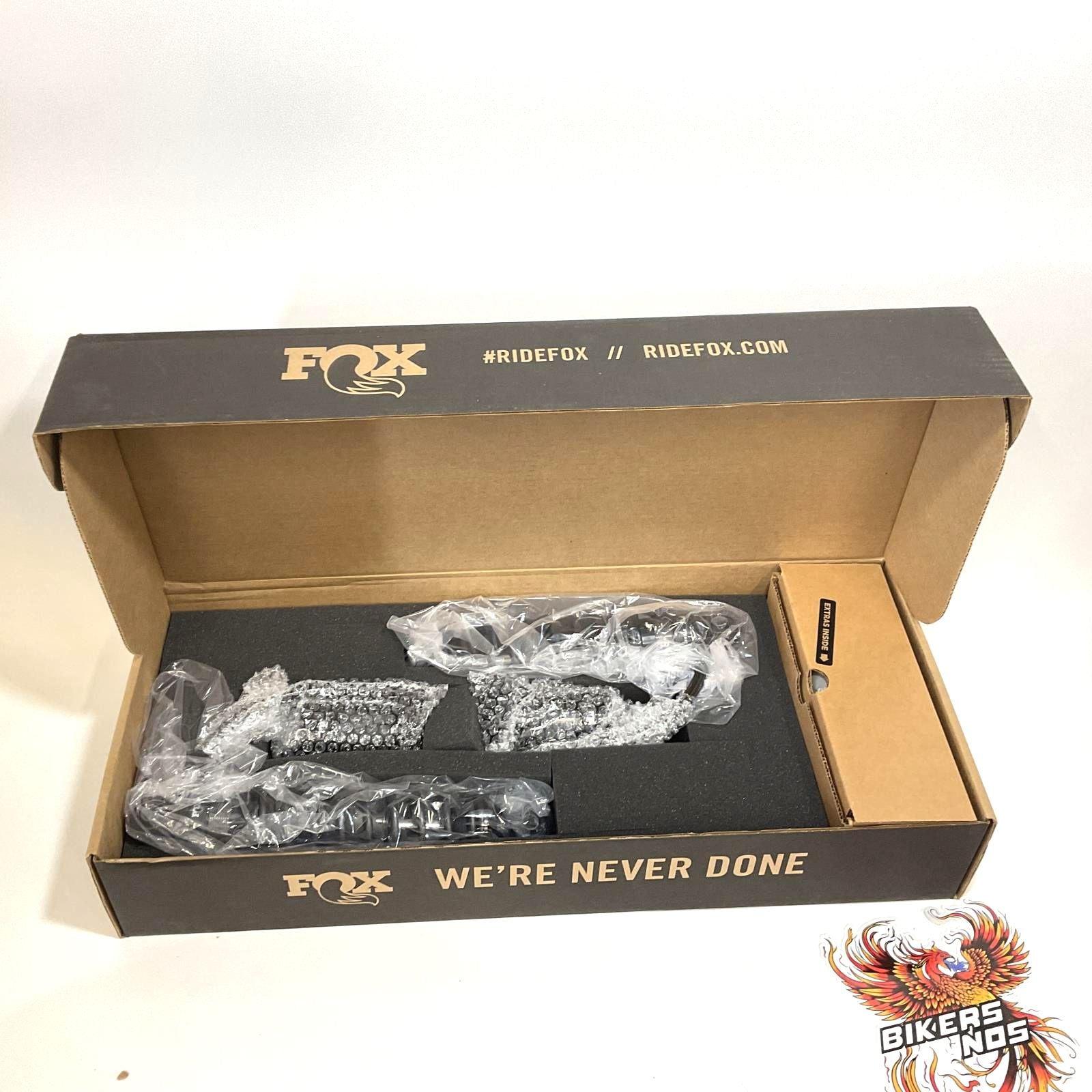

(2) Shock assemblies

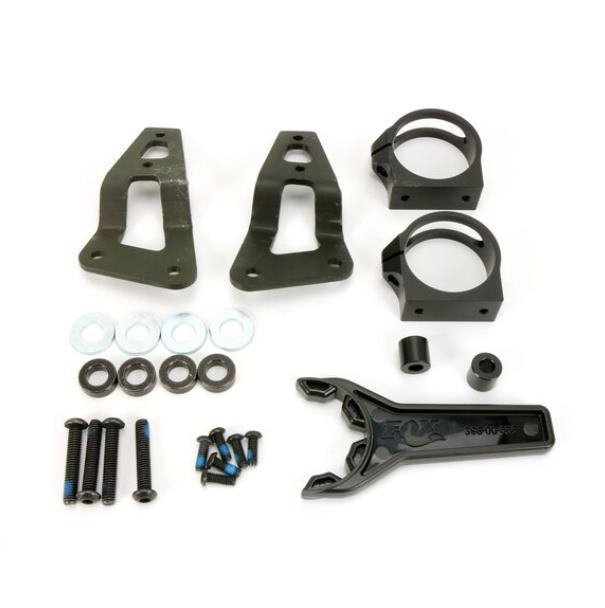

(2) Black reservoir clamps

(1) Black reservoir bracket

(6) 6mm-1.00 x 15mm Button head bolts

(4) 5/16"-18 x 1-3/4" Button head bolts

(6) Spacers

(4) Flat washers

(1) Spanner wrench

Instructions
